S3 SURFACES · 2026 CATALOGUE

Pattern Library

A catalogue-led reference to the current S3 pattern collection — from fine textures and woven geometries to bold reliefs, door patterns and directional wave forms.

Metallic Bonded 001–024 Crystal-Quartz Bonded 025–049

VISUAL INDEX

Texture is the starting point.

Selected studies below are drawn from the 2026 S3 Surfaces Product Catalogue. The tables remain the controlling reference for pattern codes, types, thicknesses, sheet sizes and finish or colour availability.

METALLIC BONDED · 001–024

Small sample swatches below are taken from the 2026 S3 Surfaces Product Catalogue and shown as a compact visual index. The code and pattern name are the primary reference.

S3 Surfaces Metallic Bonded BEAD-BLAST pattern, catalogue pattern 001 — BEAD-BLAST · 001

S3 Surfaces Metallic Bonded CHARLESTON-MAT pattern, catalogue pattern 002 — CHARLESTON-MAT · 002

S3 Surfaces Metallic Bonded CHESS pattern, catalogue pattern 003 — CHESS · 003

S3 Surfaces Metallic Bonded CHEVRON pattern, catalogue pattern 004 — CHEVRON · 004

S3 Surfaces Metallic Bonded CREEPER pattern, catalogue pattern 005 — CREEPER · 005

S3 Surfaces Metallic Bonded CUTTER pattern, catalogue pattern 006 — CUTTER · 006

S3 Surfaces Metallic Bonded ECLIPSIS pattern, catalogue pattern 007 — ECLIPSIS · 007

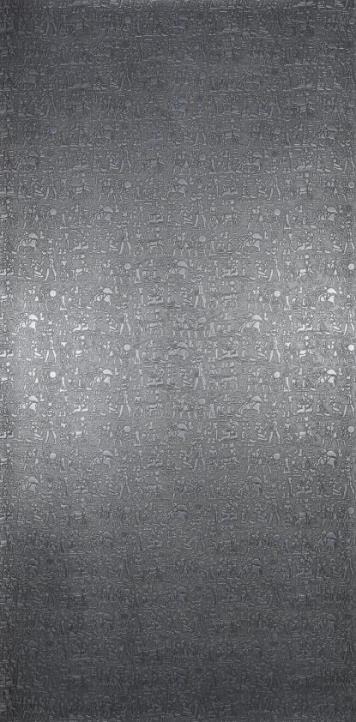

S3 Surfaces Metallic Bonded EGYPTIAN pattern, catalogue pattern 008 — EGYPTIAN · 008

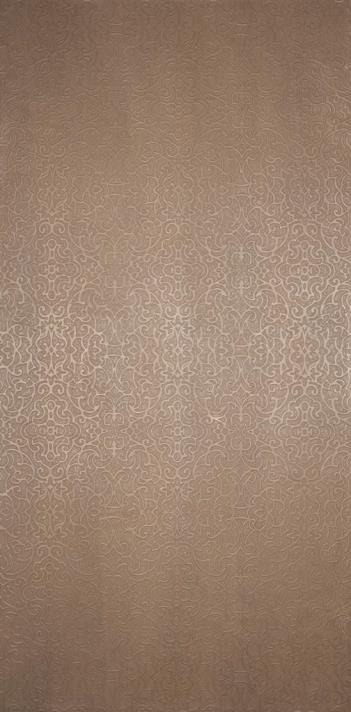

S3 Surfaces Metallic Bonded FABRIC pattern, catalogue pattern 009 — FABRIC · 009

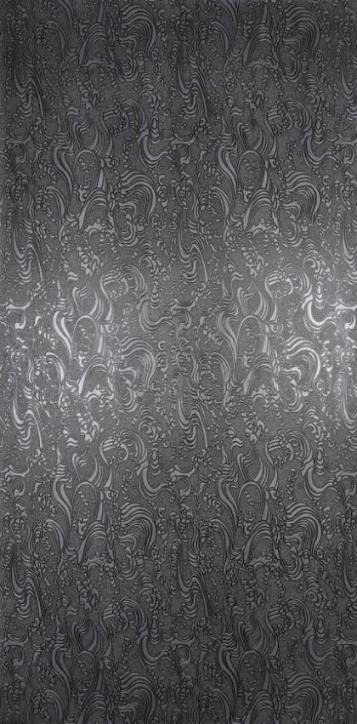

S3 Surfaces Metallic Bonded FEATHER pattern, catalogue pattern 010 — FEATHER · 010

S3 Surfaces Metallic Bonded FLUTED pattern, catalogue pattern 011 — FLUTED · 011

S3 Surfaces Metallic Bonded FROND pattern, catalogue pattern 012 — FROND · 012

S3 Surfaces Metallic Bonded GRASS-TUNDRA pattern, catalogue pattern 013 — GRASS-TUNDRA · 013

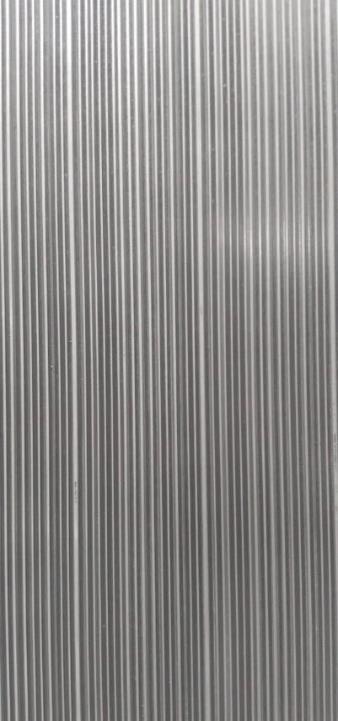

S3 Surfaces Metallic Bonded GROOVED pattern, catalogue pattern 014 — GROOVED · 014

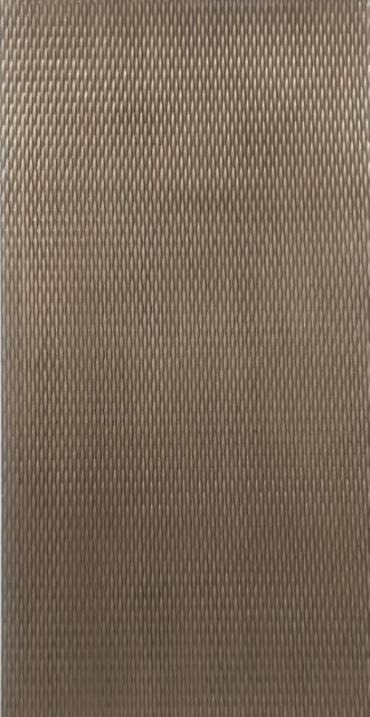

S3 Surfaces Metallic Bonded HONEYCOMB pattern, catalogue pattern 015 — HONEYCOMB · 015

S3 Surfaces Metallic Bonded LOUVER pattern, catalogue pattern 016 — LOUVER · 016

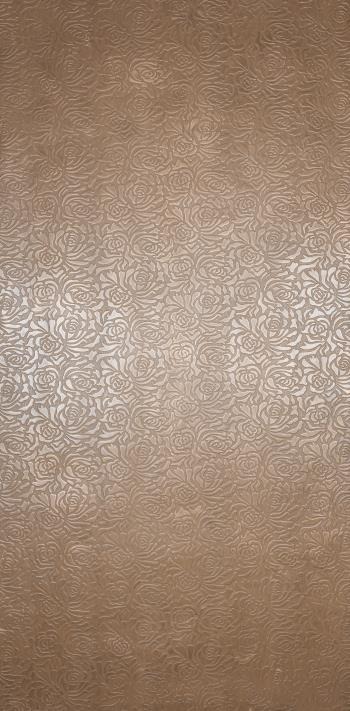

S3 Surfaces Metallic Bonded PETAL pattern, catalogue pattern 017 — PETAL · 017

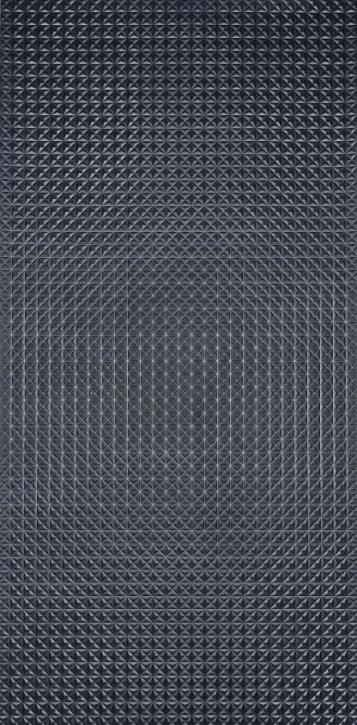

S3 Surfaces Metallic Bonded PRISMATIC pattern, catalogue pattern 018 — PRISMATIC · 018

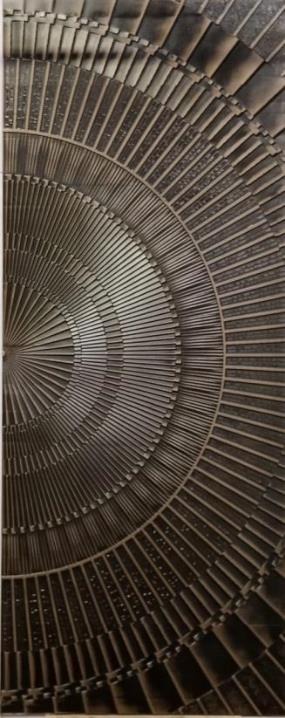

S3 Surfaces Metallic Bonded SOLARIS pattern, catalogue pattern 019 — SOLARIS · 019

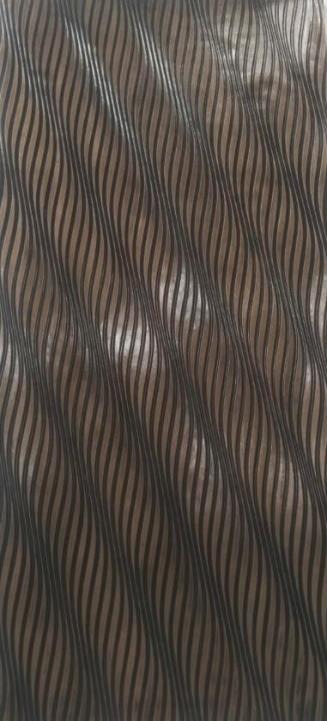

S3 Surfaces Metallic Bonded THAR pattern, catalogue pattern 020 — THAR · 020

S3 Surfaces Metallic Bonded TREAD pattern, catalogue pattern 021 — TREAD · 021

S3 Surfaces Metallic Bonded WEB pattern, catalogue pattern 022 — WEB · 022

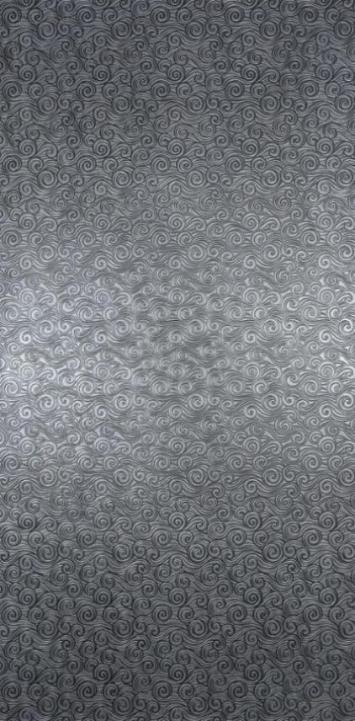

S3 Surfaces Metallic Bonded WHIRL pattern, catalogue pattern 023 — WHIRL · 023

S3 Surfaces Metallic Bonded WOVEN pattern, catalogue pattern 024 — WOVEN · 024

CRYSTAL-QUARTZ BONDED · 025–049

Small sample swatches are used wherever the 2026 catalogue provides a clearly identifiable Crystal-Quartz visual for the named pattern. Where a dedicated Crystal-Quartz image is not shown in the catalogue, the corresponding named pattern texture from the catalogue pattern library is retained as a geometry-only pattern reference.

S3 Surfaces Crystal-Quartz Bonded BEAD-BLAST pattern, catalogue pattern 025 — BEAD-BLAST · 025

S3 Surfaces Crystal-Quartz Bonded CHARLESTON-MAT pattern, catalogue pattern 026 — CHARLESTON-MAT · 026

S3 Surfaces Crystal-Quartz Bonded CHESS pattern, catalogue pattern 027 — CHESS · 027

S3 Surfaces Crystal-Quartz Bonded CHEVRON pattern, catalogue pattern 028 — CHEVRON · 028

S3 Surfaces Crystal-Quartz Bonded CREEPER pattern, catalogue pattern 029 — CREEPER · 029

S3 Surfaces Crystal-Quartz Bonded CUTTER pattern, catalogue pattern 030 — CUTTER · 030

S3 Surfaces Crystal-Quartz Bonded ECLIPSIS pattern, catalogue pattern 031 — ECLIPSIS · 031

S3 Surfaces Crystal-Quartz Bonded EGYPTIAN pattern, catalogue pattern 032 — EGYPTIAN · 032

S3 Surfaces Crystal-Quartz Bonded FABRIC pattern, catalogue pattern 033 — FABRIC · 033

S3 Surfaces Crystal-Quartz Bonded FEATHER pattern, catalogue pattern 034 — FEATHER · 034

S3 Surfaces Crystal-Quartz Bonded FLUTED pattern, catalogue pattern 035 — FLUTED · 035

S3 Surfaces Crystal-Quartz Bonded FROND pattern, catalogue pattern 036 — FROND · 036

S3 Surfaces Crystal-Quartz Bonded GRASS-TUNDRA pattern, catalogue pattern 037 — GRASS-TUNDRA · 037

S3 Surfaces Crystal-Quartz Bonded GROOVED pattern, catalogue pattern 038 — GROOVED · 038

S3 Surfaces Crystal-Quartz Bonded HONEYCOMB pattern, catalogue pattern 039 — HONEYCOMB · 039

S3 Surfaces Crystal-Quartz Bonded LOUVER pattern, catalogue pattern 040 — LOUVER · 040

S3 Surfaces Crystal-Quartz Bonded PETAL pattern, catalogue pattern 041 — PETAL · 041

S3 Surfaces Crystal-Quartz Bonded PRISMATIC pattern, catalogue pattern 042 — PRISMATIC · 042

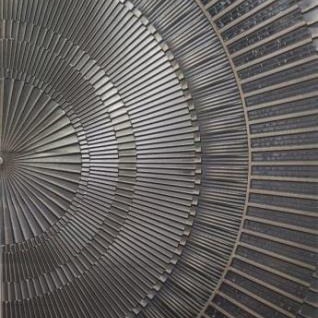

S3 Surfaces Crystal-Quartz Bonded SOLARIS pattern, catalogue pattern 043 — SOLARIS · 043

S3 Surfaces Crystal-Quartz Bonded THAR pattern, catalogue pattern 044 — THAR · 044

S3 Surfaces Crystal-Quartz Bonded TREAD pattern, catalogue pattern 045 — TREAD · 045

S3 Surfaces Crystal-Quartz Bonded WEB pattern, catalogue pattern 046 — WEB · 046

S3 Surfaces Crystal-Quartz Bonded WHIRL pattern, catalogue pattern 047 — WHIRL · 047

S3 Surfaces Crystal-Quartz Bonded WOVEN pattern, catalogue pattern 048 — WOVEN · 048

SELECTED FULL-SIZE CATALOGUE VIEWS

Larger pattern views are presented separately below where the 2026 catalogue contains a larger source image. Each view is identified with its current pattern code.

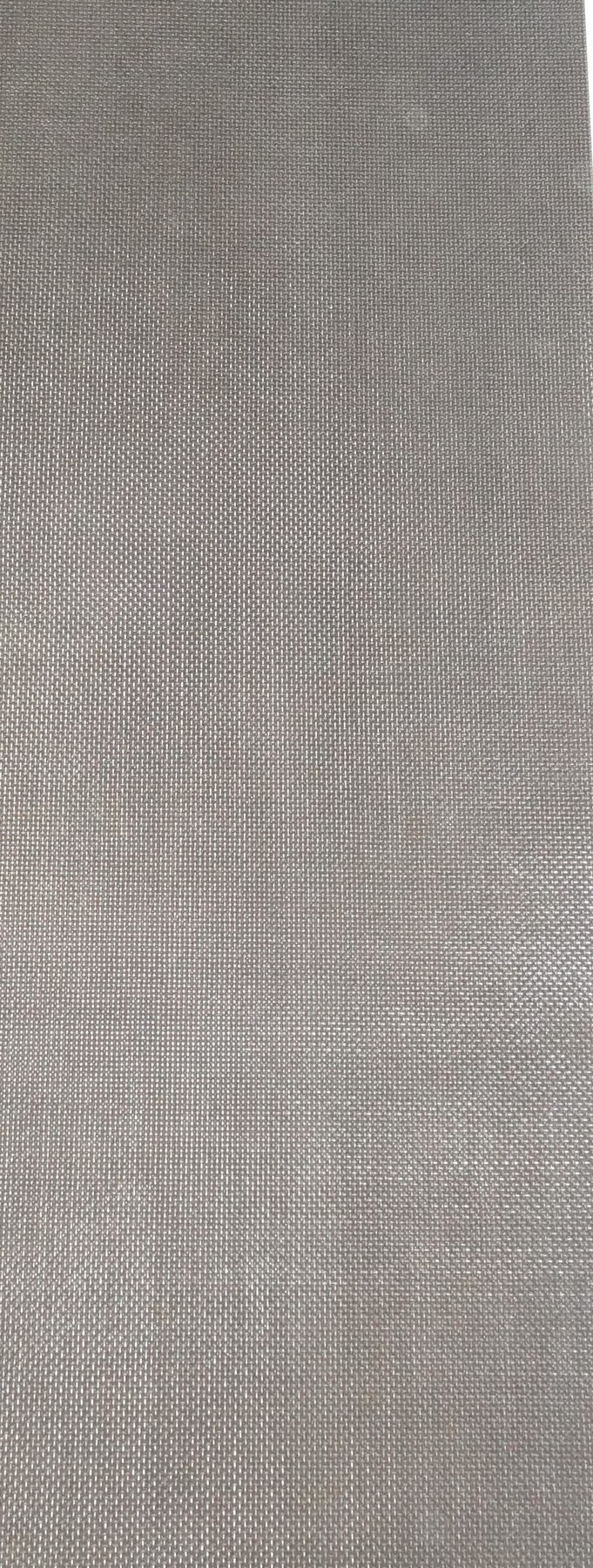

S3 Surfaces catalogue full-size pattern view CHARLESTON-MAT, code 002 — CHARLESTON-MAT · 002

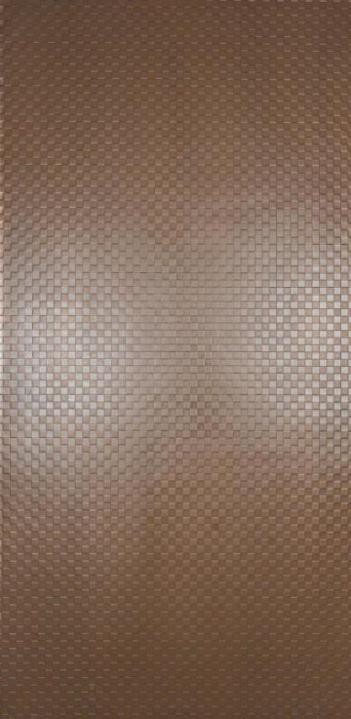

S3 Surfaces catalogue full-size pattern view CHESS, code 003 — CHESS · 003

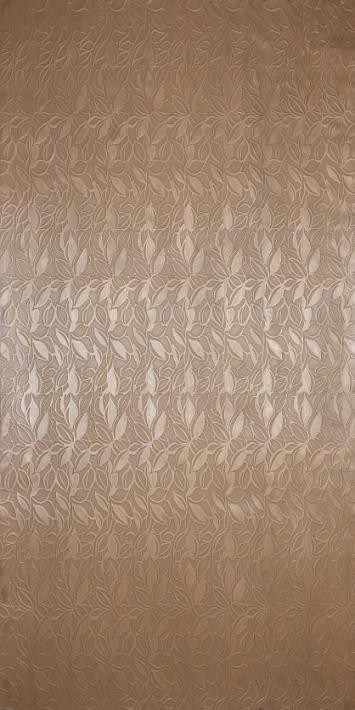

S3 Surfaces catalogue full-size pattern view CREEPER, code 005 — CREEPER · 005

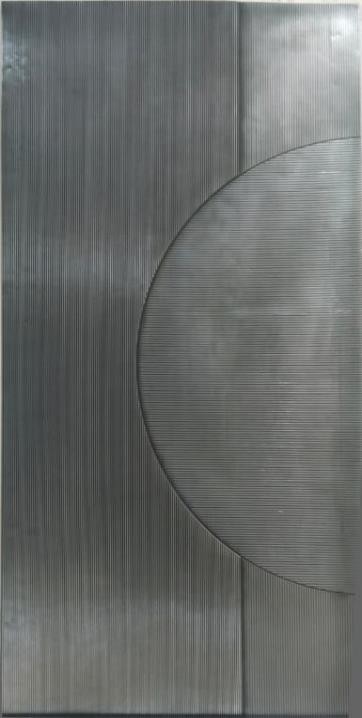

S3 Surfaces catalogue full-size pattern view ECLIPSIS, code 007 — ECLIPSIS · 007

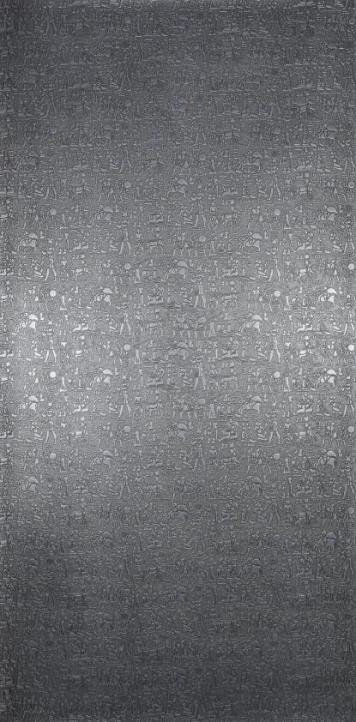

S3 Surfaces catalogue full-size pattern view EGYPTIAN, code 008 — EGYPTIAN · 008

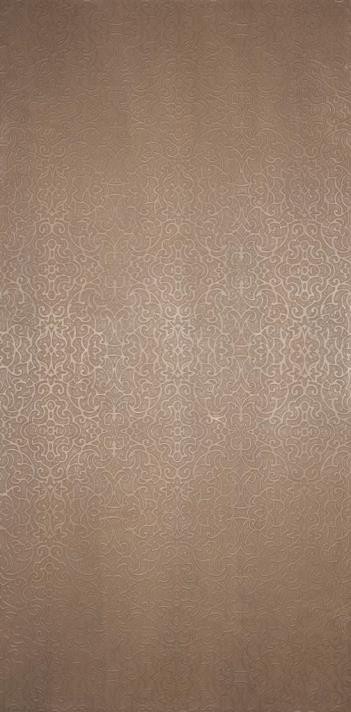

S3 Surfaces catalogue full-size pattern view FABRIC, code 009 — FABRIC · 009

S3 Surfaces catalogue full-size pattern view FEATHER, code 010 — FEATHER · 010

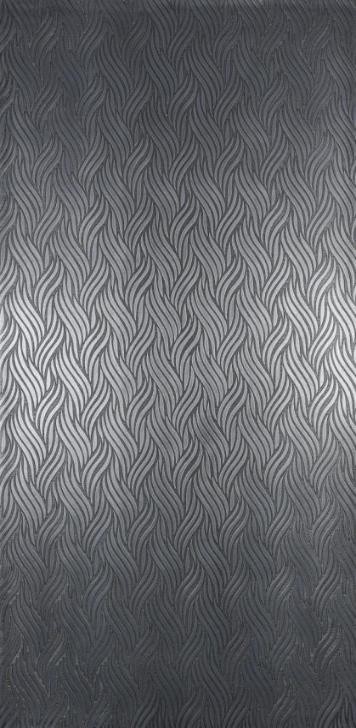

S3 Surfaces catalogue full-size pattern view FROND, code 012 — FROND · 012

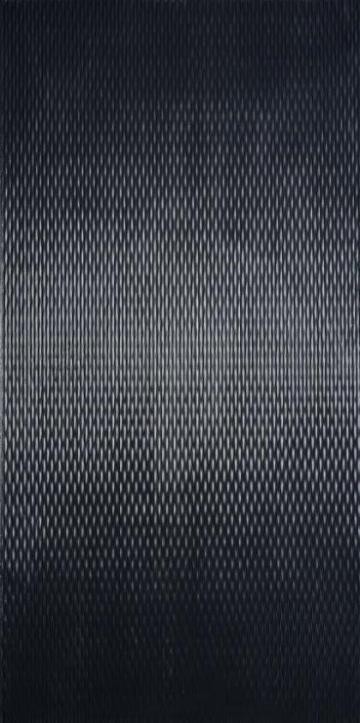

S3 Surfaces catalogue full-size pattern view HONEYCOMB, code 015 — HONEYCOMB · 015

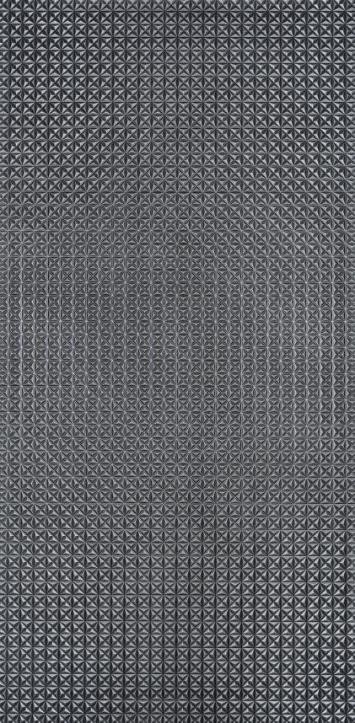

S3 Surfaces catalogue full-size pattern view PRISMATIC, code 018 — PRISMATIC · 018

S3 Surfaces catalogue full-size pattern view SOLARIS, code 019 — SOLARIS · 019

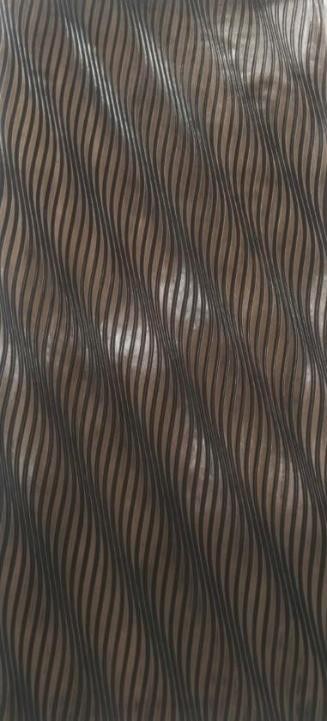

S3 Surfaces catalogue full-size pattern view THAR, code 020 — THAR · 020

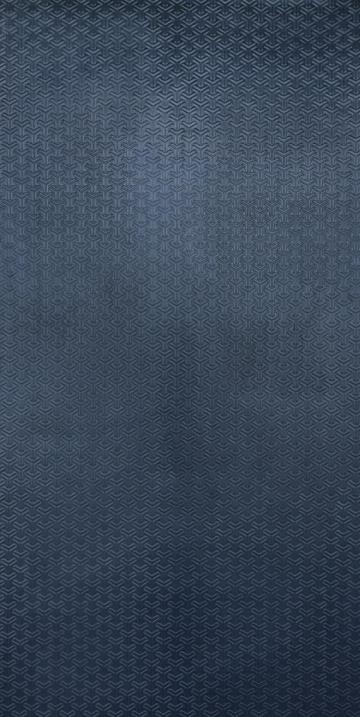

S3 Surfaces catalogue full-size pattern view TREAD, code 021 — TREAD · 021

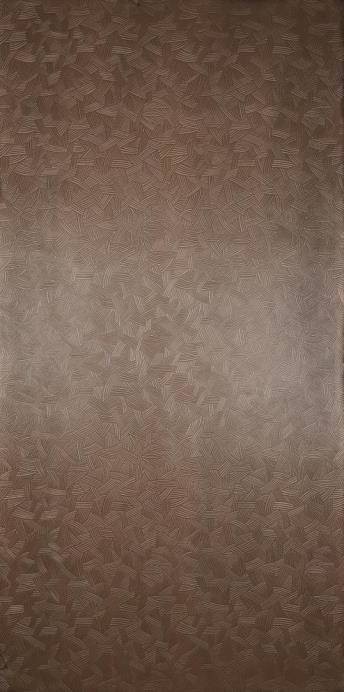

S3 Surfaces catalogue full-size pattern view WEB, code 022 — WEB · 022

S3 Surfaces catalogue full-size pattern view WHIRL, code 023 — WHIRL · 023

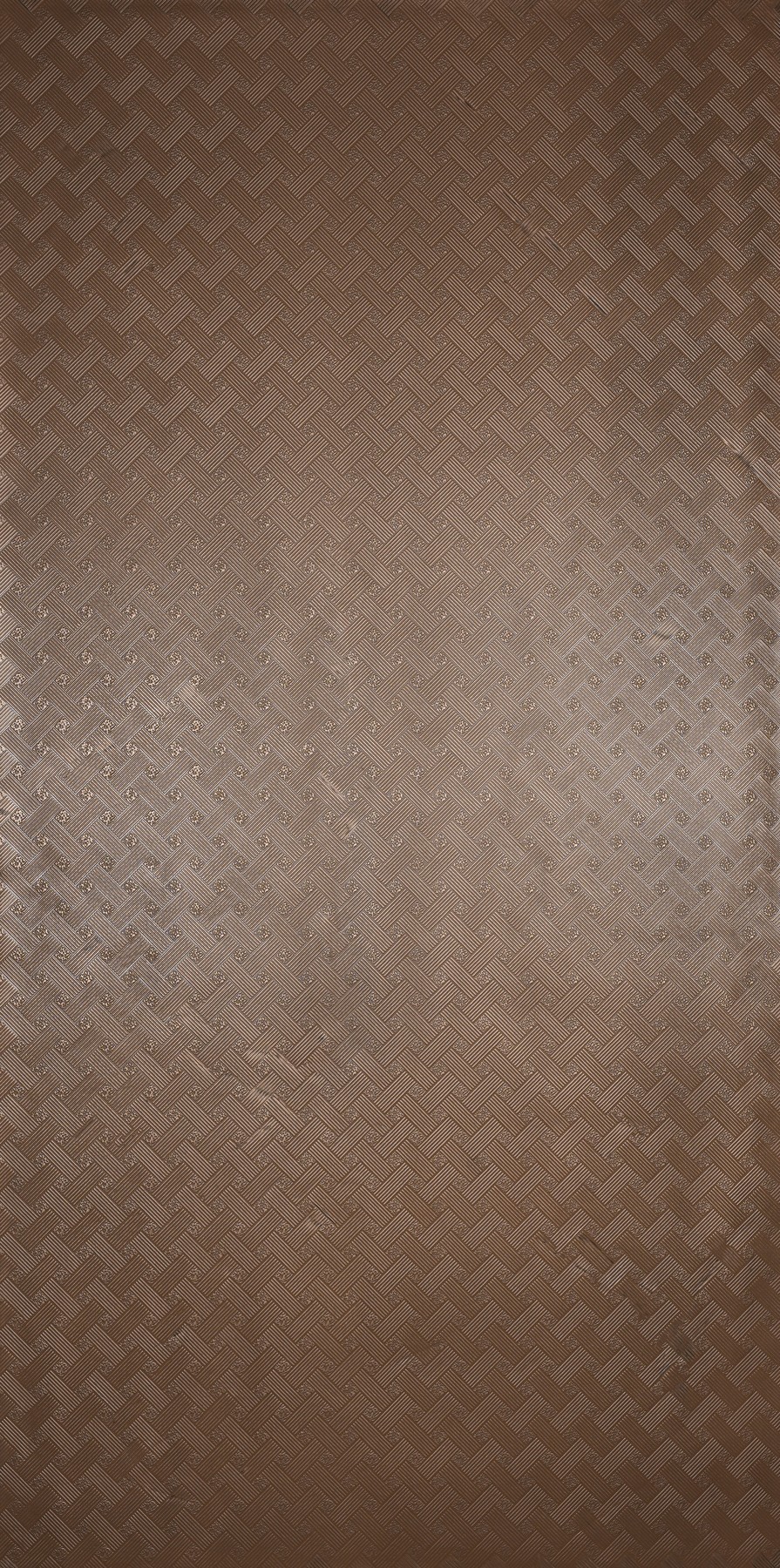

S3 Surfaces catalogue full-size pattern view WOVEN, code 024 — WOVEN · 024

PRODUCT FAMILY 01

Metallic Bonded

Twenty-four documented patterns. Pattern codes 001–024 follow the 2026 S3 Surfaces Product Catalogue.

View Metallic Bonded

documented patterns

SL / A / B / C

pattern types

2.25–8.0 mm

listed thickness range

Natural / Dark

patina system

Pattern & Code	Type	Thickness	Sheet Size	Available Finishes
001 BEAD-BLAST	STANDARD (SL/A)	0.100” / 0.120” (2.5 / 3.0 mm)	48” x 96” / 120” (1219 x 2438 / 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
002 CHARLESTON-MAT	STANDARD (B)	0.138” (3.5 mm)	36” x 120” (915 x 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
003 CHESS	SLIMLINE (SL) / STANDARD (A)	0.100” / 0.120” (2.5 / 2.9 mm)	47.35” x 95.60” (1203 x 2428 mm)	Bronze (Natural only), Aluminium (Natural only), Nickel-Silver (Natural only), Gold-Bronze (Natural)
004 CHEVRON	STANDARD (B)	0.134” (3.4 mm)	48” x 120” (1219 x 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
005 CREEPER	STANDARD (A)	0.120” (2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
006 CUTTER	STANDARD (A)	0.120” (2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze (Natural only), Aluminium (Natural only), Nickel-Silver (Natural only), Gold-Bronze (Natural)
007 ECLIPSIS	STANDARD – Left & Right-hand sheets (C)	0.178” (6.5 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
008 EGYPTIAN	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
009 FABRIC	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
010 FEATHER	STANDARD (A)	0.120” (2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
011 FLUTED	STANDARD (B)	0.138” (3.5 mm)	48” x 120” (1219 x 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
012 FROND	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
013 GRASS-TUNDRA	STANDARD (A)	0.138” (3.5 mm)	48” x 120” (1219 x 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
014 GROOVED	STANDARD (B)	0.138” (3.5 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
015 HONEYCOMB	STANDARD (C)	0.210” (5.3 mm)	48” x 96” (1219 x 2438 mm)	Bronze (Natural only), Aluminium (Natural only), Nickel-Silver (Natural only), Gold-Bronze (Natural)
016 LOUVER	STANDARD (B)	0.155” (3.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
017 PETAL	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
018 PRISMATIC	STANDARD (C)	0.256” (6.5 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
019 SOLARIS	STANDARD – Left & Right-hand sheets (C)	0.315” (8.0 mm)	48” x 96” / 120” (1219 x 2438 / 3048 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
020 THAR	STANDARD (B)	0.147” (3.7 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver (Dark only), Gold-Bronze (Natural)
021 TREAD	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
022 WEB	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
023 WHIRL	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)
024 WOVEN	SLIMLINE (SL) / STANDARD (A)	0.090” / 0.120” (2.25 / 2.9 mm)	48” x 96” (1219 x 2438 mm)	Bronze, Aluminium, Nickel-Silver, Gold-Bronze (Natural)

Specification values follow the 2026 S3 Surfaces Product Catalogue. Current commercial availability should be confirmed at enquiry / quotation stage. Physical samples should be used to verify actual colour, texture and finish; handcrafted surfaces may exhibit minor artistic variation.

PRODUCT FAMILY 02

Crystal-Quartz Bonded

Twenty-five documented patterns. Pattern codes 025–049 follow the 2026 S3 Surfaces Product Catalogue.

View Crystal-Quartz Bonded

documented patterns

A / B / C

pattern types

3.0–8.0 mm

listed thickness range

2 standard colours

Bianca-White / Carbone-Charcoal

Pattern & Code	Type	Standard Colours	Thickness	Sheet Size
025 BEAD-BLAST	STANDARD (SL/A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
026 CHARLESTON-MAT	STANDARD (B)	Bianca-White and Carbone-Charcoal	0.138” (3.5 mm)	36” x 120” (915 x 3048 mm)
027 CHESS	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	47.35” x 95.60” (1203 x 2428 mm)
028 CHEVRON	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 120” (1219 x 3048 mm)
029 CREEPER	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
030 CUTTER	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
031 ECLIPSIS — Door Pattern	STANDARD DOOR PATTERN (Left & Right-hand sheets) (C)	Bianca-White and Carbone-Charcoal	0.260” (6.5 mm)	48” x 96” (1219 x 2438 mm)
032 EGYPTIAN	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
033 FABRIC	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
034 FEATHER	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
035 FLUTED	STANDARD (B)	Bianca-White and Carbone-Charcoal	0.138” (3.5 mm)	48” x 120” (1219 x 3048 mm)
036 FROND	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
037 GRASS-TUNDRA	STANDARD (B)	Bianca-White and Carbone-Charcoal	0.138” (3.5 mm)	48” x 120” (1219 x 3048 mm)
038 GROOVED	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
039 HONEYCOMB	STANDARD (B)	Bianca-White and Carbone-Charcoal	0.220” (5.5 mm)	48” x 96” (1219 x 2438 mm)
040 LOUVERS	STANDARD (B)	Bianca-White and Carbone-Charcoal	0.155” (3.9 mm)	48” x 96” (1219 x 2438 mm)
041 PETAL	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3 mm)	48” x 96” (1219 x 2438 mm)
042 PRISMATIC	STANDARD (C)	Bianca-White and Carbone-Charcoal	0.260” (6.5 mm)	48” x 96” (1219 x 2438 mm)
043 SOLARIS — Door Pattern	STANDARD DOOR PATTERN (Left & Right-hand sheets) (C)	Bianca-White and Carbone-Charcoal	0.320” (8.0 mm)	48” x 96” / 120” (1219 x 2438 / 3048 mm)
044 THAR	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.1147” (3.7 mm)	48” x 96” (1219 x 2438 mm)
045 TREAD	STANDARD (A)	Bianca-White and Carbone-Charcoal	0.120” (3.0 mm)	48” x 96” (1219 x 2438 mm)
046 WAVES — CROSS	STANDARD (C)	Bianca-White and Carbone-Charcoal	0.236” (6.5 mm)	48” x 96” (1219 x 2438 mm)
047 WAVES — HORIZONTAL-1	STANDARD (C)	Bianca-White and Carbone-Charcoal	0.256” (6.5 mm)	48” x 96” (1219 x 2438 mm)
048 WAVES — HORIZONTAL-2	STANDARD (C)	Bianca-White and Carbone-Charcoal	0.256” (6.5 mm)	48” x 96” (1219 x 2438 mm)
049 WAVES — VERTICAL	STANDARD (C)	Bianca-White and Carbone-Charcoal	0.256” (6.5 mm)	48” x 96” (1219 x 2438 mm)

Specification values follow the 2026 S3 Surfaces Product Catalogue. Custom colour may be available on a per-project basis. Current commercial availability should be confirmed at enquiry / quotation stage. Physical samples should be used to verify actual colour, texture and finish; handcrafted surfaces may exhibit minor artistic variation.

SPECIFIER NOTE

Use the pattern code together with material family, type, colour / finish, size and quantity when preparing an enquiry. For controlled project selection, request physical samples and the current technical documents.
