The colour is part of the casting.
Scratches and blemishes are far less apparent than in materials with surface-applied finishes because colour is integral to the bonded material system.
PRODUCT FAMILY 02
Quartz.
Cast into Texture.
A beautiful, durable architectural surfacing material with a clean, contemporary look — crystallised advanced quartz granules cast into an FRP matrix.
WHAT IS CRYSTAL-QUARTZ?
A contemporary material system.
Crystal-Quartz Bonded is produced by blending crystallised advanced quartz granules with an FRP matrix to create a surfacing sheet that is flexible, lightweight, extremely durable, easy to clean and low-maintenance.
Texture directs light and creates dimension.
Patterns range from intricate textures to refined geometrics to designs that echo nature, with selected patterns available in horizontal and vertical orientations.
COLOUR
Two core colours.
One integral material.
The standard palette is Bianca-White and Carbone-Charcoal. Custom RAL colour shades may be available for larger quantities or on a per-project basis.
Standard coloursBianca-White · Carbone-Charcoal
Custom colourRAL shades may be available for larger quantities
Ordering disciplinePattern · Colour · Size · Quantity
PATTERN COLLECTION
Twenty-five documented patterns.
The Crystal-Quartz range combines shared S3 pattern language with material-specific surfaces and selected orientation variants. The specification table below is the controlling catalogue reference.
025Bead-Blast
027Chess
028Chevron
029Creeper
031EclipsisDoor pattern · left + right-hand sheets
035Fluted
039Honeycomb
042Prismatic
043SolarisDoor pattern · left + right-hand sheets

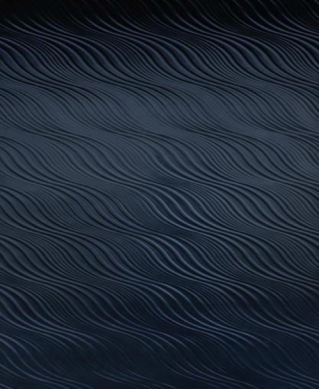

046Waves — Cross
047Waves — Horizontal-1
049Waves — Vertical
| Pattern & Code | Type | Standard Colours | Thickness | Sheet Size |
|---|---|---|---|---|
| BEAD-BLAST 025 | STANDARD (SL/A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) |
| CHARLESTON-MAT 026 | STANDARD (B) | Bianca-White and Carbone-Charcoal | 0.138” (3.5 mm) | 36” x 120” (915 x 3048 mm) |
| CHESS 027 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 47.35” x 95.60” (1203 x 2428 mm) |
| CHEVRON 028 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 48” x 120” (1219 x 3048 mm) |
| CREEPER 029 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) |
| CUTTER 030 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) |
| ECLIPSIS, a Door Pattern 031 | STANDARD DOOR PATTERN (Left & Right-hand sheets) (C) | Bianca-White and Carbone-Charcoal | 0.260” (6.5 mm) | 48” x 96” (1219 x 2438 mm) |
| EGYPTIAN 032 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) |
| FABRIC 033 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) |
| FEATHER 034 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) |
| FLUTED 035 | STANDARD (B) | Bianca-White and Carbone-Charcoal | 0.138” (3.5 mm) | 48” x 120” (1219 x 3048 mm) |
| FROND 036 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) |
| GRASS-TUNDRA 037 | STANDARD (B) | Bianca-White and Carbone-Charcoal | 0.138” (3.5 mm) | 48” x 120” (1219 x 3048 mm) |
| GROOVED 038 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) |
| HONEYCOMB 039 | STANDARD (B) | Bianca-White and Carbone-Charcoal | 0.220” (5.5 mm) | 48” x 96” (1219 x 2438 mm) |
| LOUVERS 040 | STANDARD (B) | Bianca-White and Carbone-Charcoal | 0.155” (3.9 mm) | 48” x 96” (1219 x 2438 mm) |
| PETAL 041 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3 mm) | 48” x 96” (1219 x 2438 mm) |
| PRISMATIC 042 | STANDARD (C) | Bianca-White and Carbone-Charcoal | 0.260” (6.5 mm) | 48” x 96” (1219 x 2438 mm) |
| SOLARIS, a Door Pattern 043 | STANDARD DOOR PATTERN (Left & Right-hand sheets) (C) | Bianca-White and Carbone-Charcoal | 0.320” (8.0 mm) | 48” x 96”/120” (1219 x 2438 / 3048 mm) |
| THAR 044 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.1147” (3.7 mm) | 48” x 96” (1219 x 2438 mm) |
| TREAD 045 | STANDARD (A) | Bianca-White and Carbone-Charcoal | 0.120” (3.0 mm) | 48” x 96” (1219 x 2438 mm) |
| WAVES (CROSS) 046 | STANDARD (C) | Bianca-White and Carbone-Charcoal | 0.236” (6.5 mm) | 48” x 96” (1219 x 2438 mm) |
| WAVES (Horizontal-1) 047 | STANDARD (C) | Bianca-White and Carbone-Charcoal | 0.256” (6.5 mm) | 48” x 96” (1219 x 2438 mm) |
| WAVES (Horizontal-2) 048 | STANDARD (C) | Bianca-White and Carbone-Charcoal | 0.256” (6.5 mm) | 48” x 96” (1219 x 2438 mm) |
| WAVES (VERTICAL) 049 | STANDARD (C) | Bianca-White and Carbone-Charcoal | 0.256” (6.5 mm) | 48” x 96” (1219 x 2438 mm) |
Specification values follow the 2026 S3 Surfaces Product Catalogue. Current commercial availability should be confirmed at enquiry/quotation stage. Physical samples should be used to verify actual colour and texture; handcrafted surfaces may exhibit minor artistic variation.
PERFORMANCE
A clean, durable architectural surface.
Crystal-Quartz Bonded is documented as flexible, lightweight, extremely durable, easy to clean and low-maintenance. Current CSI documentation specifies NFPA and IBC Class B and UBC Class 2 fire ratings.
Durable
Designed as a high-performance architectural surfacing material.
Lightweight
FRP composite construction supports a lighter surfacing solution.
Flexible
Castings can be used in selected curved applications subject to pattern, thickness and radius.
Easy to clean
Designed for low-maintenance architectural use.
Fire-rated
NFPA and IBC Class B; UBC Class 2, as documented by the current CSI.
Integral colour
Colour is incorporated into the bonded material system rather than surface-applied.
SUSTAINABILITY + WARRANTY
A precise sustainability story.
Environmental documentation is available for specification. A 15-year product warranty applies to covered interior applications.
ENVIRONMENTAL DOCUMENTATION
PED
Product Environmental Data is available for project and specification review through the S3 Specifier Centre.
Refer to the current Product Environmental Data for the documented material and environmental information.
WARRANTY
15 years
Product warranty for covered interior applications. Outdoor installation or use is excluded from the warranty terms.
SEE THE MATERIAL
Explore the texture.
Specify the palette.
Request a physical sample, begin a project discussion, or ask for technical documentation.
